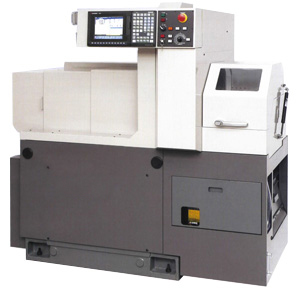

NN-20U5 - NN-20CS
Heavy cutting machine for $1(Adopts UB Series TOOL)
- Tool Post specification
- The Tool Post adopts the same Tool Post as UB series which enables to heavy-cutting and keep high accuracy.
-
- OD tool (Tool Holder) □12.7×5
- ID tool 4（ER-16）
- Live tool 4（ER-16）
- No Live tool can be selected by optional specification.
Specification
| Specification | Specification Value | |
|---|---|---|
| Macining Capacity | Machining diameter | φ20mm |
| Machining length | 200mm/1 chuck | |
| Max. Parts unloading length | 200mm | |
| Main Spindle | Main spindle through-hole diameter | φ24mm |
| Main spindle RPM | 10,000 r.p.m max | |
| $1 | Max. no. of tools (as standard) | 13 |
| OD（□12.7×150mm Max） | 5（OP6） | |
| Frontal hole ER16 | 4 | |
| Live tool ER16 | 4 | |
| Max frontaldrill diameter | φ10mm | |
| Max. frontal drill length | 40mm | |
| Max.frontal tap diameter | M8 | |
| Max. live tool; spindle drill diameter | φ8mm | |
| Max.live tool spindle tap diameter | M6 | |
| Live main tool spindle | Max 6,000r.p.m | |
| Rapid feed speed rate | 36m/min | |
| Min. command unit | 0.0001mm | |
| Main spindle C-axis min command unit | 0.0001° | |
| Motor | Main spindle motor | 2.2/3.7kW |
| Live tool motor | 0.75kW | |
| Axis feed motor X1、Z1 | 1.0kW | |
| Axis feed motor Y1 | 0.5kW | |
| Dimensions and Others | Coolant pump | 0.25kW |
| Lubricant pump | 0.003kW | |
| Main spindle center height | 1000mm | |
| Pneumatic pressure & flow rate | 0.6MPa、50L/min | |
| Coolant tank | 63L | |
| Lubricant tank | 0.8L | |
| W×D×H | 1650×1030×1680mm | |
| Weight（incl. options） | 1300kg | |
| NC | MITSUBISHI NC | M70L |
| NC display (8.4 color TFT LCD) | ||
| NC standard function | Machining program memory capacity | 600m |
| Number of tool off-set correction | 40 | |
| Background programming editing function | ||
| Main spindle C-axis function | ||
| User macro function | ||
| Tool nose wear compensation | ||
| Corner chamfering/Corner rounding | ||
| Fixed cycle | ||
| Complex fixed cycle | ||
| geometric commands | ||
| Operation manual | ||
| Serial In/Output interface | ||
| CF Card interface |
Standard Accessories
- 4 Live tool unit
- Frontal 4-drill attachment
- Tool holder □12.7(5pcs.）
- Main spindle cooling unit
- Automatic lubricator (w/level detection)
- Coolant oil unit
- Coolant oil cut-off detector
- Cut-off tool breakage detector
- Door safety interlock
- Main spindle load delection mode
- Automatic power interception
- Parts catcher
- Leveling pads
Optional Accessories
- Synchronous rotary guide bush 20
- Synchronous rotary guide bush drive unit
- Fixed guide bush 20
- Chuck sleeve ･ Spring ･ Spindle cap（$1） P-20
- Drill holder φ22-10-70
- Tap holder φ22-94L
- REGO-FIX ERM nut
- Working light (High luminous LED)
- Tool holder □12.7 (additional)
- Drill holder for deep hole
- Tap holder for deep hole
- Tool presetter
- Manual pulse generator 37P
- NC display language (English/Chinese/Korean)
- Pipe type parts unloader（I.D φ5、6、7、8、9、10、11、12、13、14、15、16、17、19、20、22mm）
- Large-sized lubricant pump 1.8L
- Override switch
- Chip conveyor
- Automatic fire extinguisher
- Oil mist collector
- Tooling
- Working tool set
- Note:
- The above-menlioned machine capabilily is for the case when work material is SUS303.
Depending on the processing condition such as the qualily of work material and the tools to be used，machine capabilities values may differ from the above-mentioned values. - The specification based on the specifications applied within Japan. Specifications are subject to change without notice.
- This product could be classified as strategic item or other export regulated under the Foreign Exchange and Foreign Trade Law.Contact our sales representative when exporting this product.
